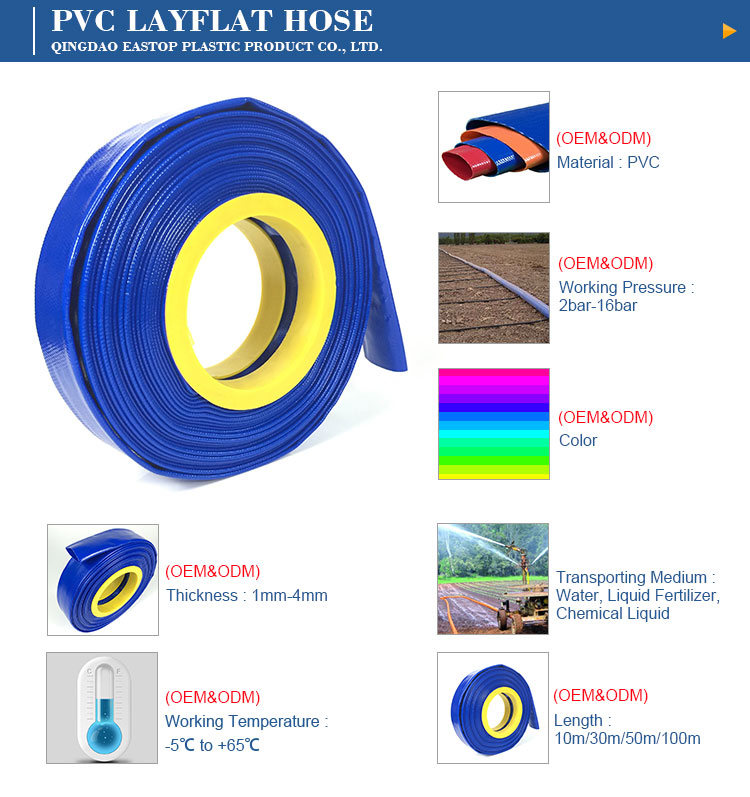

PVC Layflat Hose

Parameter

New Style Colorful 1 2 3 4 6 8 10 Inch Lay Flat PVC Pipe Hose Industrial PVC Nitrile Layflat Pump Hose With High Quality

Product Description

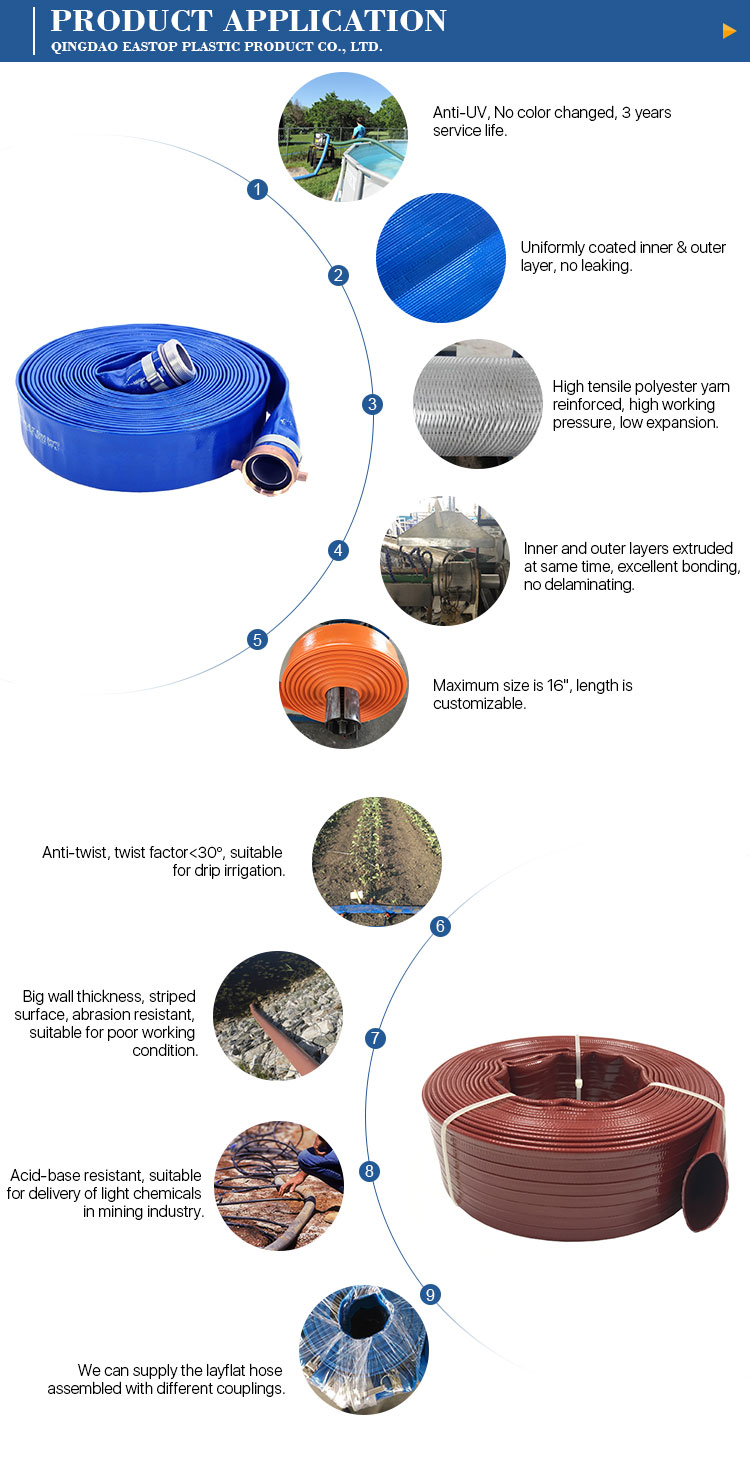

Application

For pressurised delivery of liquids in agriculture irrigation, mining, construction dewatering and submersible pumping.

Temperature Range:-5℃ to +65℃

Specification

ID		OD	WP		BP		Weight	Length
in	mm	mm	bar	psi	bar	psi	kg/m	m
3/4	20	22.4	4	60	16	240	100	100
2	25	27.4	4	60	16	240	150	100
1-1/4	32	34.4	4	60	16	240	160	100
1-1/2	38	40.2	4	60	16	240	180	100
2	51	53	4	60	12	180	220	100
2-1/2	64	66.2	4	60	12	180	300	100
3	76	78.2	4	60	12	180	360	100
4	102	104.5	4	60	12	180	550	100
5	127	129.7	4	60	12	180	750	100
6	153	155.7	3	45	9	135	900	100
8	203	207	3	45	9	135	1600	100
10	255	259.8	3	45	9	135	2600	100
12	305	309.7	2	30	6	90	3000	100
14	358	365	2	30	6	90	5000	50
16	408	414	2	30	6	90	6000	50

Features

(1).Flexible PVC with high grade strength polyester yarn reinforcement, lightweight, aging resistant, abrasion resistant and compact for economical storage.

(2).EASTOP supplies a range of high pressure, high performance agiculture irrigation pipe manufactured to meet many national and international standards.We also offer a range of water pipe accessories including couplings, branch pipes, jet spray nozzles and standpipes.

(3).Light weight, good flexibility, bright color, smooth

(4).Capable for keeping the flexibility and elasticity under the low-temperature water

(5).Resistant to abrasion, corrosion, high pressure and terrible weather.

(6).Ideal durable hose for irrigation and drainage in the farmland and garden. cement filing, river-way sand extraction, water discharge in the construction site, road building and so on
