PVC Suction Hose

Parameter

Eastop

PVC suction hose plastic helix spring hose Sewage Suction and Delivery Hose is a durable and robust item that guarantees durable and gratification efficient. This hose may be the option perfect conveying and transporting sewage along with other fluids for commercial, agricultural, and domestic applications.

Created from the typical synthetic helix springtime product greatest, the Eastop PVC Suction and Delivery Hose was created to withstand extreme climate. It comes down with a stronger and construction versatile helps it is resistant to questionable, abrasion, and crushing, rendering it your most suitable choice for heavy-duty uses.

The hose's unique design includes an inside smooth that allows a smooth movement of fluids, minimizing the alternative of obstructions and boosting the whole efficiency of the procedure. Moreover, this hose is resistant to chemical substances, that makes it the decision perfect transporting dangerous or corrosive liquids.

This PVC suction hose plastic helix spring hose Sewage Suction and Delivery Hose could be suitable to be used in a number of companies, including mining, marine, and construction. The Eastop PVC Suction and Delivery Hose provides vacuum cleaner very good, that makes it well-suited to be found in, as one example, waste and cleansing treatment operations.

Due to the lightweight and versatile design, this hose is easy to address, ensuring without the necessity for almost any unique tools it up as you are able to efficiently set. It is usually an easy task to maneuver, providing you with the flexibleness you will like to effectively finish your tasks.

The PVC suction hose plastic helix spring hose Sewage Suction and Delivery Hose comes into play a number of diameters, and lengths. Which means you are able to choose the size that most readily useful fits your requirements being . It is easy to match and keep, and so you will conserve money and time in to the run very long.

_01

Product Description

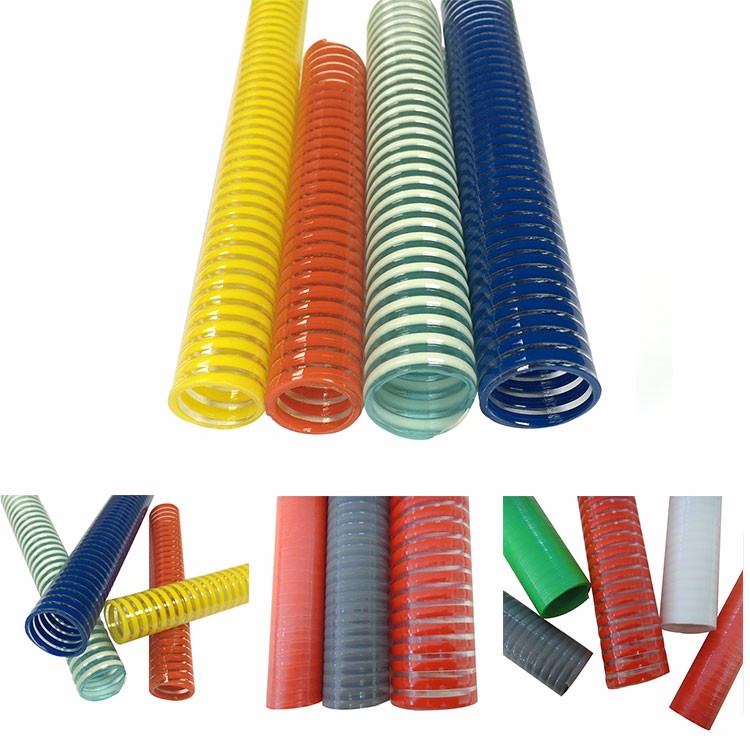

PVC suction hose plastic helix spring hose Sewage Suction and Delivery Hose

Application

For suction and delivery of liquids, powder, granules in industry, agriculture and construction.

Features

Flexible PVC with rigid PVC spiral reinforcement, abrasion and chemical resistant, impact and crush resistant, smooth inner construction for unrestricted flow of materials.

Temperature Range -5℃ to +65℃

Specification

Inner Diameter		Outer Diameter		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
3/4	19	0.984	25	0.28	8	120	50	150
1	25	1.221	31	0.35	8	120	50	150
1-1/4	32	1.496	38	0.40	7	100	50	150
1-1/2	38	1.811	46	0.65	7	100	50	150
2	51	2.362	60	1.05	6	90	50	150
2-1/2	64	2.913	74	1.30	6	90	30	90
3	76	3.386	86	1.70	5	75	30	90
4	102	4.488	114	3.00	5	75	30	90
5	127	5.512	140	3.60	4	60	30	90
6	153	6.614	168	5.50	4	60	20	60
8	203	8.622	219	7.00	3	45	10	30
10	254	10.787	274	12.00	2	30	10	30
12	305	12.953	329	18.00	2	30	10	30
